CV32-M4F Industrial MCU
32-bit MCU with hardware FPU, dual 12-bit ADC, and three advanced motor-control timers. Intended for servo drives and pump inverters that need deterministic PWM and on-chip analog.
32-bit MCU with hardware FPU, dual 12-bit ADC, and three advanced motor-control timers. Intended for servo drives and pump inverters that need deterministic PWM and on-chip analog.
Quality note: Specified to meet applicable industry standards. Bureau Veritas certified quality system. Shorter lead-time builds available on qualified demand.
The PDF is the public evaluation brief (specs, pin map, package sketch). The revision-controlled datasheet with SOA curves, land pattern and PPAP pack is issued after an RFQ.
Key specifications
| Core | 32-bit, FPU |
|---|---|
| Clock | up to 180 MHz |
| Flash / SRAM | 512 KB / 128 KB |
| ADC | 2 × 12-bit |
| Timers | 3 advanced PWM |
| Interfaces | CAN-FD, UART, SPI, I2C |
| Package | LQFP-64 |
| Temp range | -40 to +125 °C |
Typical applications
- Servo drives
- Pump inverters
- Industrial I/O
- BMS supervision
Use-case examples are typical, not a substitute for your design review, SOA analysis, and qualification plan.

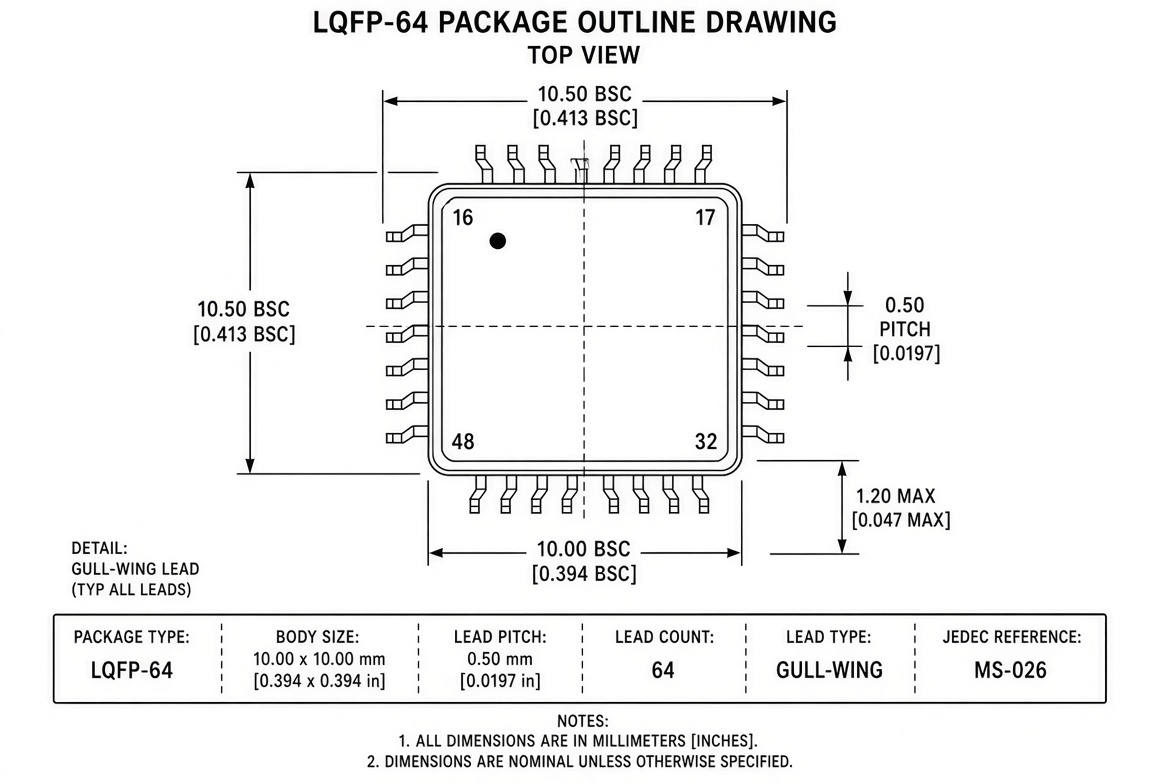

Package outline sketch
Reference drawing for layout planning. Use the product brief PDF for notes and the controlled datasheet for the land pattern released to your program.
