CV-POL-12B 12 A Synchronous Buck
12 A synchronous buck converter with compensation-free current-mode control for 3.3 V and 1.8 V point-of-load rails feeding MCUs and SerDes.
12 A synchronous buck converter with compensation-free current-mode control for 3.3 V and 1.8 V point-of-load rails feeding MCUs and SerDes.
Quality note: Specified to meet applicable industry standards. Bureau Veritas certified quality system. Shorter lead-time builds available on qualified demand.
The PDF is the public evaluation brief (specs, pin map, package sketch). The revision-controlled datasheet with SOA curves, land pattern and PPAP pack is issued after an RFQ.
Key specifications
| Vin | 3.0 V to 18 V |
|---|---|
| Iout | 12 A |
| Vout | 0.6 V to 5.5 V |
| Switching | 400 kHz–2.2 MHz |
| Package | QFN-20 |
| Temp range | -40 to +125 °C |
Typical applications
- Industrial controllers
- Automotive ADAS companion rails
- FPGA / MCU core power
Use-case examples are typical, not a substitute for your design review, SOA analysis, and qualification plan.

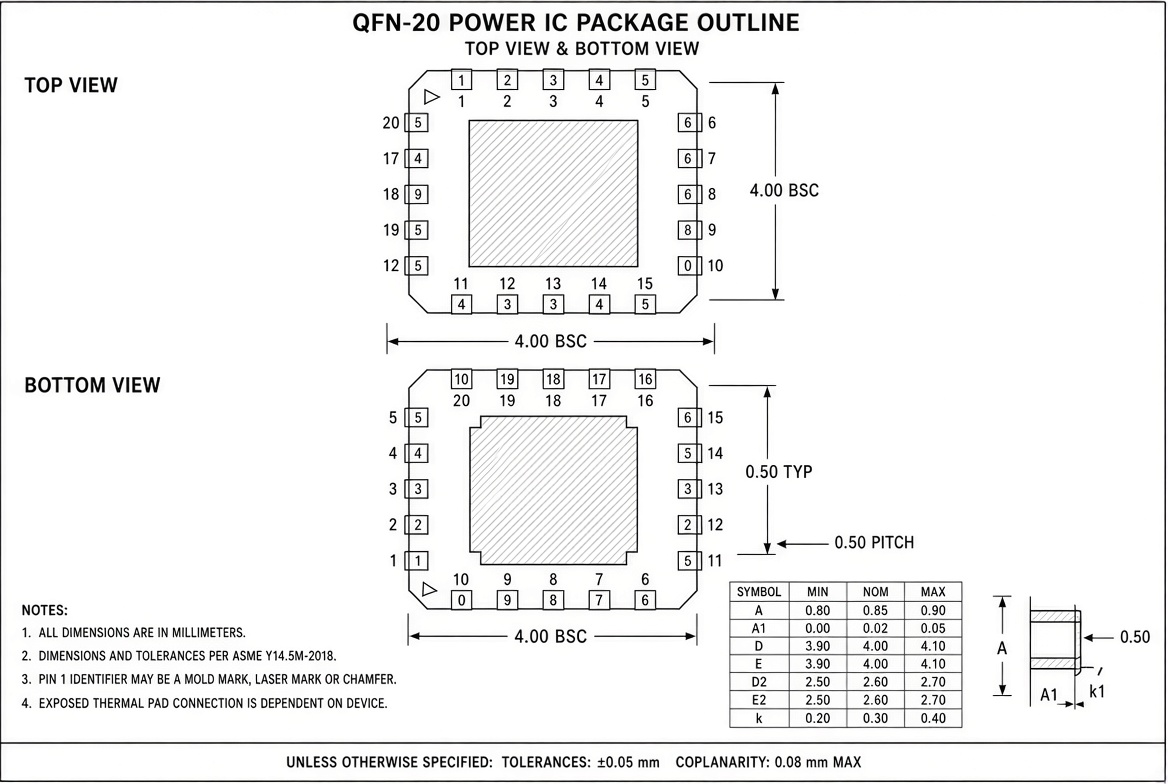

Package outline sketch
Reference drawing for layout planning. Use the product brief PDF for notes and the controlled datasheet for the land pattern released to your program.
